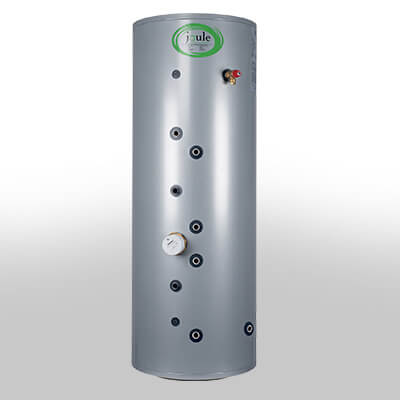

Joule Cyclone High Gain Twin Coil

Features & Benefits

The Joule cylinders comes in a sleek metallic grey outer casing. It is heated by boiler and supports Thermal and PV solar. Joule Cyclone range of unvented hot water cylinder is designed to work with any solar system on the market. Joule Ireland have dedicated themselves to manufacturing unvented cylinder’s using top quality components throughout.

  • Manufactured from high grade Duplex stainless steel
  • Fitted with Branded Quality Components
  • Factory pre built Gas or Oil Boiler Ready

Categories: Unvented Cylinders

General

Standard Models

ITEM NO CAPACITY WEIGHT EMPTY WEIGHT FULL WATER VOL ERP RATING ENERGY EFFICIENCY  REHEAT TIME INDIRECT STANDING LOSS STANDING LOSS SOUND POWER LEVEL  PRIMARY COIL RATING SOLAR COIL RATING
LITRE KG KG L   nwh% MINS W kWh/24h dB KW KW
TCIMVG-0200LFC 200 61 258 186 C 21 81 1.94 15 97 18
TCIMVG-0250LFC 250 70 318 240 C 27 89 2.14 15 97 22
TCIMVG-0300NFC 300 77 374 277 C 32 103 2.47 15 110 22
TCIMVG-0400LFC 400 84 486 381 C 42 102 2.45 15 138 30
TCIMVG-0500NFC 500 107 609 479 C 49 115 2.76 15 138 35
