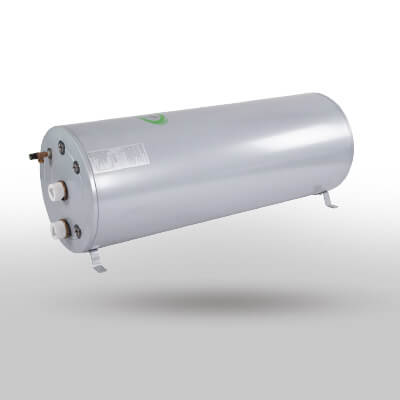

Joule Cyclone Horizontal Direct

Features & Benefits

The Joule unvented cylinder Horizontal range comes with cradles that are not only included but pre-fitted. These can be easily removed if the Joule hot water cylinder needs to squeeze through a tight access hatch. Joule Ireland unvented cylinders comes in a sleek metallic grey outer casing and fitted with quality components.

  • Manufactured from high grade Duplex stainless steel
  • Fitted with Branded Quality Components
  • Factory pre built Gas or Oil Boiler Ready

Categories: Unvented Cylinders

General
ITEM NO CAPACITY WEIGHT EMPTY WEIGHT FULL WATER VOLUME ERP ENERGY RATING REHEAT TIME INDIRECT STANDING LOSS STANDING LOSS PRIMARY COIL RATING
LITRE KG KG L MINS w kWh/24h KW
TCIMHI-0125LFB 125 36 161 123 B 27 52 1.25 16
TCIMHI-0150LFB 150 39 187 148 B 32 63 1.51 16
TCIMHI-0170LFC 170 43 210 168 C 33 69 1.66 18
TCIMHI-0200NFC 200 46 243 194 C 38 89 2.14 18
TCIMHI-0250NFC 250 56 302 247 C 39 97 2.33 22
TCIMHI-0300NFC 300 64 360 290 C 46 104 2.50 22
TCIMHI-0400LFC 400 71 471 400 C 35 112 2.69 40
TCIMHI-0500LFC 500 87 589 502 C 41 125 3.00 43
