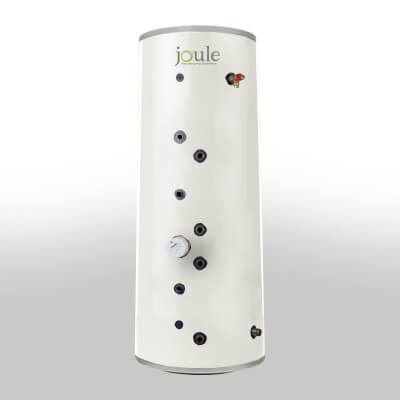

Wellmaster Solar Twin Coil

Features & Benefits

Our Wellmaster range of hot water cylinders has been designed to work with any solar system. The twin solar cylinders are manufactured with 9mm sensor pockets for the solar controller to ensure that the solar system performs at its optimum level.

  • Boiler and Solar high recovery coil.
  • Smooth tube coil construction for durability and performance.
  • Compression connections fitted as standard.
  • Beveled stat pocket for better fitting.
  • 9mm Solar stat pockets for PT1000 solar probes.
  • White and grey wipe clean rigid case for a premium appearance.
  • Pre plugged secondary tapping for ease of installation.
  • All Connections clearly labeled. Butt Welded process used throughout and robotically welded.
  • Branded quality components used throughout.

Categories: Unvented Cylinders

General
ITEM NO CAPACITY WEIGHT EMPTY WEIGHT FULL WATER VOL ERP RATING ENERGY EFFICIENCY  REHEAT TIME INDIRECT STANDING LOSS STANDING LOSS PRIMARY COIL RATING SOLAR COIL RATING
LITRE KG KG L   nwh% MINS W kWh/24h KW KW
TCIWVS-0200NFC 200 75 275 196 C 35 21 83 1.99 16 16
TCIMVD-0125LFC 400 110 510 402 C 37 37 102 2.45 16 22
TCIMVD-0125LFC 500 147 647 492 C 37 45 115 2.76 16 22
